Propeller Shaft Bearing Systems

propeller shaft bearing system

Propeller Shaft Bearings

propeller-shaft-compaq

COMPAC

Thordon COMPAC is a high performance water lubricated bearing system primarily for “blue water” operating conditions. Specially formulated with a low coefficient of friction to reduce startup friction and eliminate stick-slip,

Learn More

SXL aft bearing installed sq

SXL

Thordon SXL offers a lower coefficient of friction for reduced break-away torque and smoother operation at lower shaft RPM, increased resistance to third particle abrasive wear and improved wear life compared to XL.

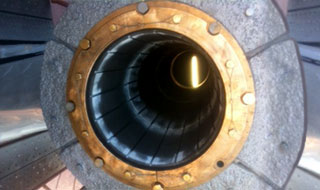

Installed XL bearing

XL

Our traditional standard propeller shaft bearing grade, Thordon XL is a general purpose bearing offering superior performance compared to other bearings commonly used in propeller shaft applications. XL provides good balance between long wear life, low coefficient of friction, reasonable abrasion resistance and cost effectiveness.

IMG-20120312-00228 sq

RiverTough

Thordon RiverTough propeller shaft bearings operating in combination with hard coated nickel-chrome-boron sleeves are specially formulated to provide superior wear life in very abrasive water conditions and have proven their ability to last at least twice as long as rubber bearings.

Shaft Coating

Water Quality Package

Bearing Condition
Monitoring System

ThorShield-Anti-Corrosion-Shaft-Coating

ThorShield

Thordon's ThorShield propeller shaft coating system provides corrosion protection against seawater. This toughened, 2-part epoxy coating is up to nine times more flexible than existing shaft coating products.

Learn More
WQP SS r

Water Quality Package

The Thordon Water Quality Package is designed to supply seawater to the propeller shaft bearings for lubrication and cooling while also removing suspended solids from the seawater.

Learn More
Bearing Condition Monitoring (BCMv2)

BCMv2 & BCM-W

The Thordon Bearing Condition Monitoring system provides a one-touch, remote indication of current bearing clearance. The system comes in both wired and wireless versions that support the Classification Societies’ requirements for condition monitoring of marine vessel bearing wear inspection. By enabling continuous, real-time data, the BCM can empower ship operators to enhance operational efficiency and reduce costs.

Learn More

Shaft Seals

Seal installed on Hudson low res (crop)

SeaThigor

The Thordon SeaThigor Seal is a mechanical face seal for 300mm (11.8") to 750mm (29.5") water lubricated propeller shafts found in yachts, cruise ships, merchant ships and naval vessels. The SeaThigor has evolved from a design first tested in 2003 and improved during the next decade.

Learn More
BWSsq

BlueWater Seal

The Thordon BlueWater seal is a water lubricated forward seal for 300mm (11.811”) to 1000mm (39.370”) propeller shafts found in various vessels, such as yachts, cruise ships, merchant ships and naval vessels. The simplicity of the seal design provides minimal seal maintenance.

Learn More

Documents



Technical Papers


References

Design

approval-tb-bearing-size-icon

Thordon Bearings Sizing Calculation Program

The final (fully finished) sizing of a Thordon elastomer or ThorPlas bearing can be determined by using the Thordon Bearing Sizing Calculation Program.
You cannot run the Thordon Bearing Sizing Calculation Program without a User Registration Number.
Once you have a User Registration Number you can download the Program below and enter it when prompted.

Step 1 - Register:
Click here to Request a Bearing Sizing Program User Registration Number

Step 2 - Download:
If you have a Bearing Sizing Program User Registration Number, you can download the program here
